Current Location>>Products>>10G Transcivers>>10G SFP+ CWDM

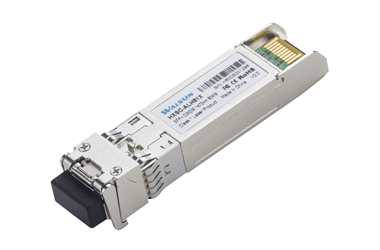

10G SFP+ CWDM

Egone 10G SFP+ CWDM series optical modules include 10G SFP+ CWDM 10KM,10G SFP+ CWDM 20KM,10G SFP+ CWDM 40KM、10GSFP+ CWDM 80KM,SFP+ CWDM 100KM and other products.Provides commercial temperature, extended temperature, and industrial grade temperature for customers to choose from. 10G SFP+ CWDM transcivers use the LC interface, compatible with IEEE802.3ae and SFF-8472 standards, with low power consumption, small volume, high rate. It is mainly used in data center interconnection, SONET/SDH, metropolitan area network, 4G LET wireless network, transmission network, high-speed peer to peer connection, optical fiber channel and so on. 10G SFP+ CWDM transcivers modules can be adapted to HUAWEI、H3C、CISCO、Alcatel-lucent、Juniper、HP and other devices.

BUY

P/N	Product Description	Date Rate	Reach	Wavelength	Transmitter	Receiver	Power Consumption	Temperature (deg C)	Date Sheet
HXSC-ALxx41I	SFP+ CWDM	10Gb/s	40km	1470~1610	EML	PIN	<1.5W	-40~+85°C
HXSC-ALxx41C	SFP+ CWDM	10Gb/s	40km	1470~1610	EML	PIN	<1.5W	0~+70°C
HXSC-ALxx81I	SFP+ CWDM	10Gb/S	80km	1470~1610	EML	APD	<1.5W	-40~+85°C
HXSC-ALxx81C	SFP+ CWDM	10Gb/s	80km	1470~1610	EML	APD	<1.5W	0~+70°C
HXSC-ALxx11C	SFP+ CWDM	10Gb/s	10km	1270~1610	DFB	PIN	<1.0W	0~+70°C
HXSC-ALxx41C	SFP+ CWDM	10Gb/s	40km	1270~1370	DFB	PIN	<1.5W	0~+70°C
HXSC-ALxx61C	SFP+ CWDM	10Gb/s	60km	1270~1330	DFB	APD	<1.5W	0~+70°C
