Current Location>>Products>>10G Transcivers>>10G SFP+

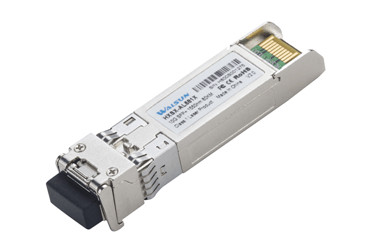

10G SFP+

Egone 10G SFP+ series optical modules include10G SFP+ SR、10G SFP+ LR、10G SFP+ ER、10G SFP+ ZR and other products. Provides commercial temperature, extended temperature, and industrial grade temperature for customers to choose from. 10G SFP+ transcivers use the MPO or LC interface, compatible with IEEE802.3ae and SFF-8472 standards, with low power consumption, small volume, high rate. It is mainly used in data center interconnection, SONET/SDH, metropolitan area network, 4G LET wireless network, transmission network, high-speed peer to peer connection, optical fiber channel and so on. 10G SFP+ transciversl modules can be adapted to HUAWEI、H3C、CISCO、Alcatel-lucent、Juniper、HP and other devices.

BUY

P/N	Product Description	Date Rate	Reach	Wavelength	Transmitter	Receiver	Power Consumption	Temperature (deg C)	Date Sheet
HXSX-AL1N2I	SFP+ SR	10Gb/s	300m	85nm	VCSEL	PIN	<1.2W	-40~+85°C
HXSX-AL1N2C	SFP+ SR	10Gb/s	300m	850nm	VCSEL	PIN	<1.0W	0~+70°C
HXSX-AL3M2I	SFP+ LRM	10Gb/s	220m	1310nm	FP	PIN	<1.2W	-40~+85°C
HXSX-AL3M2C	SFP+ LRM	10Gb/s	220m	1310nm	FP	PIN	<1.0W	0~+70°C
HXSX-AL3Q1I	SFP+ IR	10Gb/s	2km	1310nm	FP	PIN	<1.2W	-40~+85°C
HXSX-AL3Q1C	SFP+ IR	10Gb/s	2km	1310nm	FP	PIN	<1.0W	0~+70°C
HXSX-AL311I	SFP+ LR	10Gb/s	10km	1310nm	DFB	PIN	<1.2W	-40~+85°C
HXSX-AL311C	SFP+ LR	10Gb/s	10km	1310nm	DFB	PIN	<1.0W	0~+70°C
HXSX-AL341I	SFP+ ER	10Gb/s	40km	1310nm	DFB	PIN	<1.5W	-40~+85°C
HXSX-AL341C	SFP+ ER	10Gb/s	40km	1310nm	DFB	PIN	<1.0W	0~+70°C
HXSX-AL541I	SFP+ ER	10Gb/s	40km	1550nm	EML	PIN	<1.5W	-40~+85°C
HXSX-AL541C	SFP+ ER	10Gb/s	40km	1550km	EML	PIN	<1.5W	0~+70°C
HXSX-AL581I	SFP+ ZR	10Gb/s	80km	1550nm	EML	APD	<1.5W	-40~+85°C
HXSX-AL581C	SFP+ ZR	10Gb/s	80km	1550nm	EML	APD	<1.5W	0~+70°C
HXSX-AL5W1I	SFP+ ZR	10Gb/s	100km	1550nm	EML	APD	<1.5W	-40~+85°C
HXSX-AL5W1C	SFP+ ZR	10Gb/s	100km	1550nm	EML	APD	<1.5W	0~+70°C
